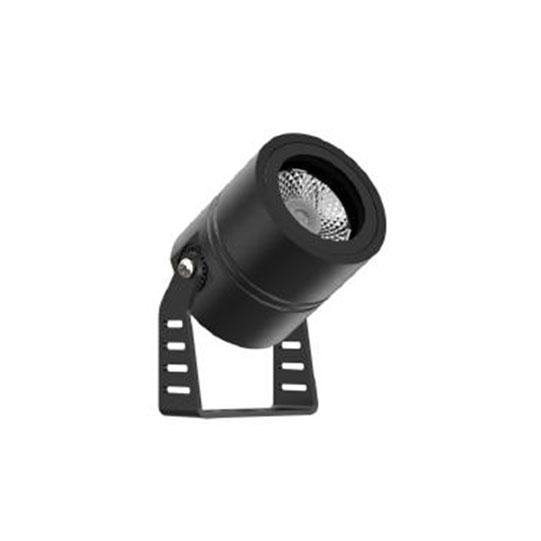

L07066 Projector Light
BASE: L07066MIRANDES lighting solution with professional specifications
Specifications at a Glance
6W
Power
553lm
Lumen Output
2200K2700K3000K3500K4000K5000K5700K6500K
Available Colour Temperatures
CRI 80CRI 90
Colour Rendering Index
IP66
Protection Rating
15° / 24° / 36° / 60°
Beam Angle
AC110-240V
Input
55x75x102mm
Body Dimensions
Black
Available Finishes
On/OffDALI1-10V0-10VPhase
Dimming Options
ALUMINUM DIE-CAST
Material
Technical evidence & warranty
Supporting model-specific declarations/test reports require verification
Evidence requirementsWarranty statusAVAILABLE CONFIGURATIONS
64 listed configurations · availability requires confirmation
Smart PDF Generation: Use the configurator above to select your specific options (light type, CCT, finish, length), then click "Download Datasheet" to generate a custom PDF for your exact configuration.
L07066.822.03.15
CCT:
2200K
Power:6W
Lumen:553lm
Beam:
15°
Finish:
CRI 80IP66Black
L07066.827.03.15
CCT:
2700K
Power:6W
Lumen:553lm
Beam:
15°
Finish:
CRI 80IP66Black
L07066.830.03.15
CCT:
3000K
Power:6W
Lumen:553lm
Beam:
15°
Finish:
CRI 80IP66Black
L07066.835.03.15
CCT:
3500K
Power:6W
Lumen:553lm
Beam:
15°
Finish:
CRI 80IP66Black
L07066.840.03.15
CCT:
4000K
Power:6W
Lumen:553lm
Beam:
15°
Finish:
CRI 80IP66Black
L07066.850.03.15
CCT:
5000K
Power:6W
Lumen:553lm
Beam:
15°
Finish:
CRI 80IP66Black
Need Custom Options?
Looking for different CCT, finish, beam angle, or other specifications? Our team can help configure the perfect solution for your project.
Questions about configurations? Contact our sales team for technical assistance.
Product Information
- Category:
- PROJECTOR LIGHT
- Series:
- MIRANDES
- Family:
- MIRANDES
- Dimension:
- 55x75x102mm
- Input Voltage:
- AC110-240V
- Material:
- ALUMINUM DIE-CAST
Applications
Outdoor
Configure your product
L07066
Order code
Listed configurationL07066.822.03.15
64 listed configurations · availability requires confirmation
