Magnetic Light
SLIMPSY
6 variants·luminaire·magnetic

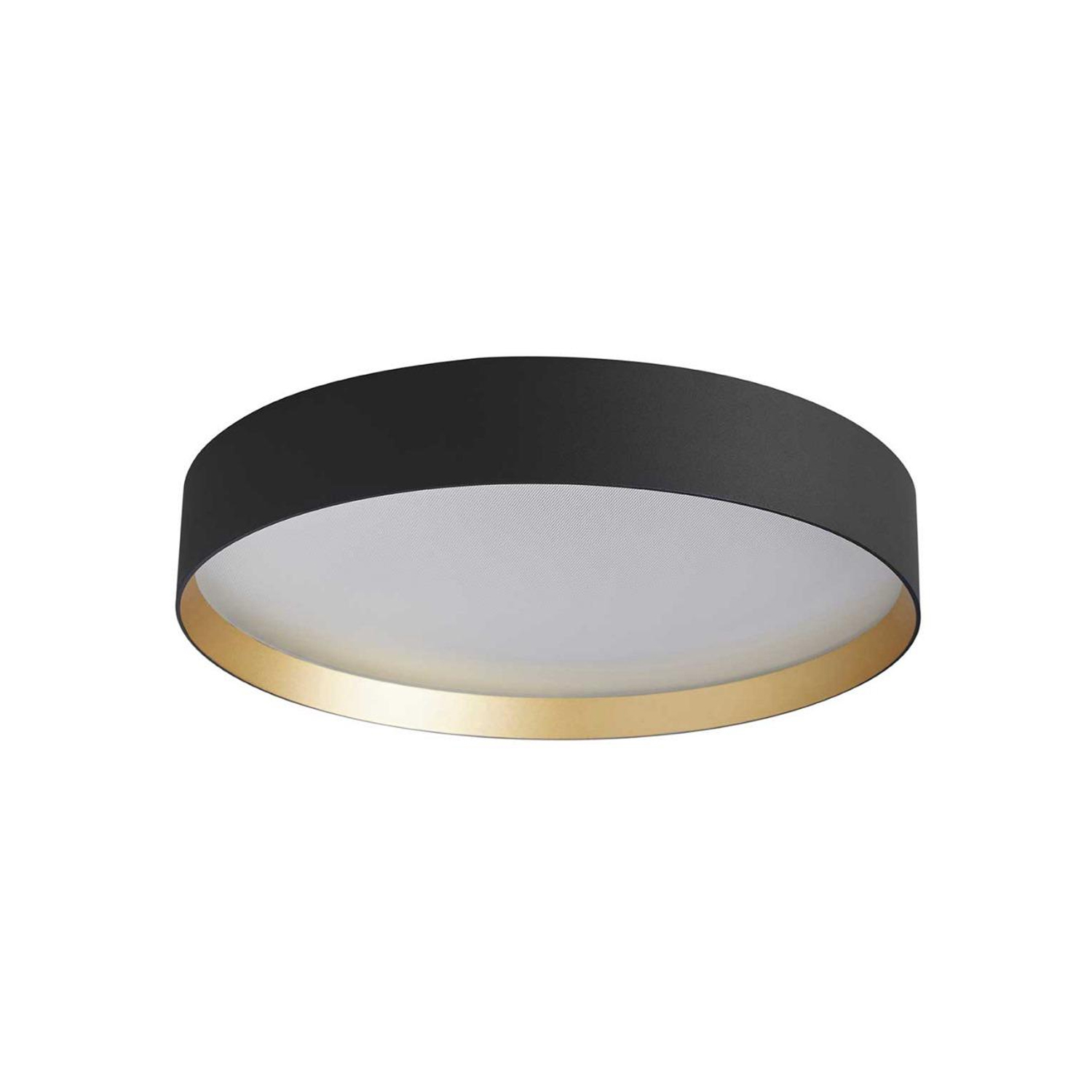

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (6)
Dimensions
Technical Drawing
Drawing and sizes shown for model LBMG382.
Size — model LBMG382
Ø113x34mm
Technical Data
Full Specification
| Dimensions | Ø113x34mm |
|---|---|
| Cut-out | On request |
| Power | 8W |
| Lumen output | On request |
| Efficacy | On request |
| Optics / beam angle | 100° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI / R9 | 90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 24VDC |
| Light source | On request |
| Material | Die casting aluminum |
| Finish | Bronze · natural-bronze · Natural Bronze |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
9 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
8W
Power
100°
Beam Angle
3000K
Colour Temperature
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø113x34mm
Dimensions
