Spot Light
ENDOR
14 variants·luminaire·ceiling recessed

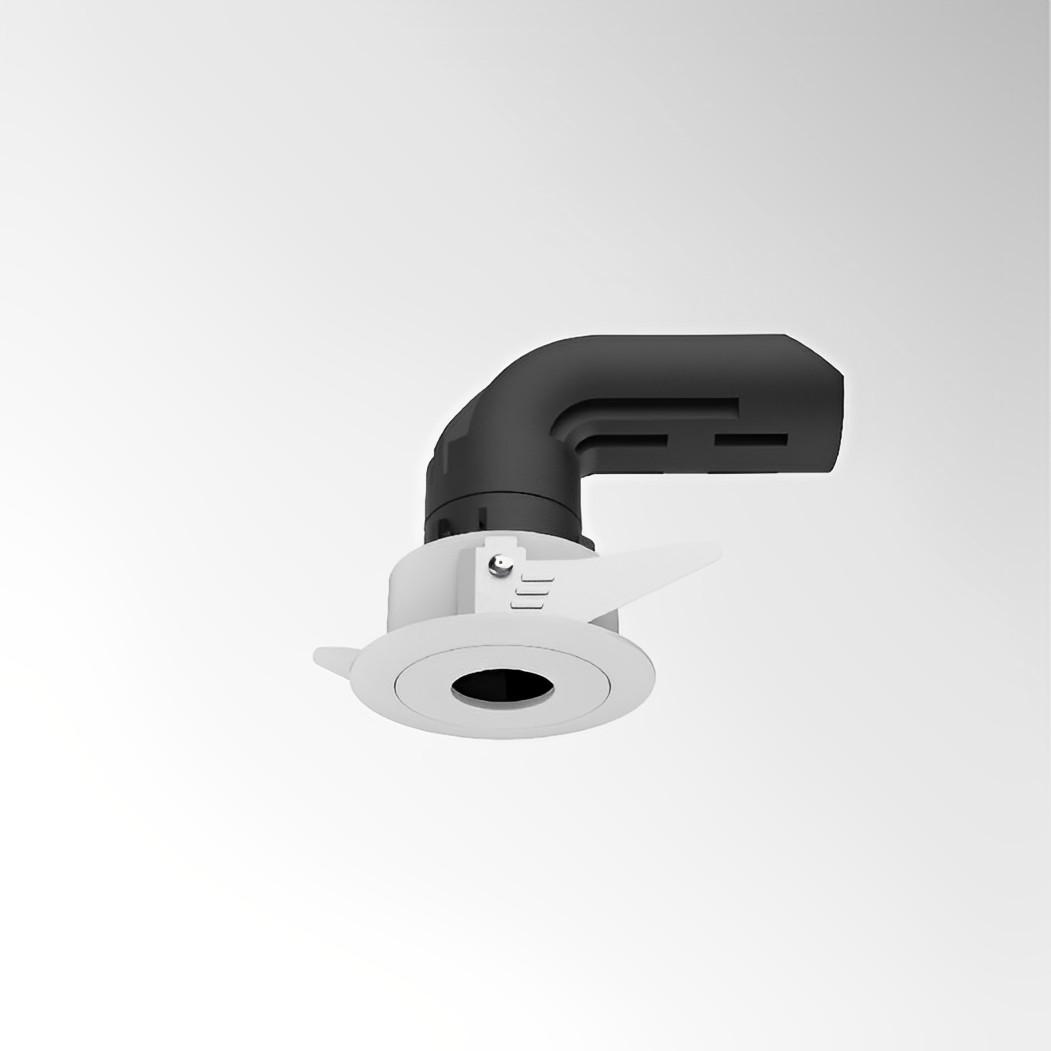

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (14)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | White | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | White | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm | |
| LBE2002 | 8W | 2700K, 3000K, 4000K, 5000K | 10° | 90 | white+black | Ø53x65mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2002.
Size — model LBE2002
Ø53x65mm
Cut-Out
Ø45mm
Technical Data
Full Specification
| Dimensions | Ø53x65mm |
|---|---|
| Cut-out | Ø45mm |
| Power | 8W |
| Lumen output | 380lm |
| Efficacy | 48 lm/W |
| Optics / beam angle | 10° · 24° · 36° · 50° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI / R9 | 90 · >90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 220-240VAC |
| Light source | On request |
| Material | Die-Casting Aluminum |
| Finish | white+black · White |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
12 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
8W
Power
10°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
Ø53x65mm
Dimensions
Ø45mm
Cut-Out
