Spot Light

FUSION

27 variants·luminaire·ceiling recessed

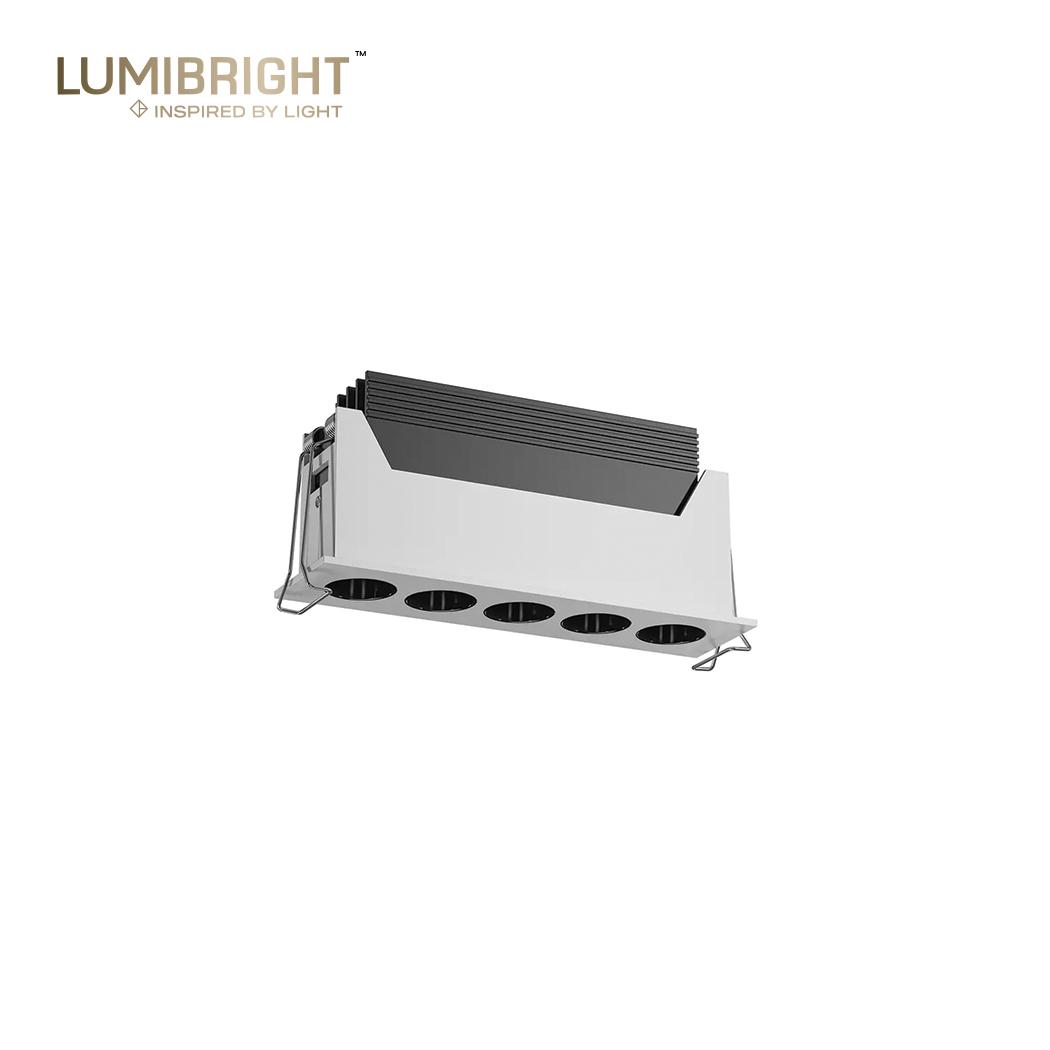

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (27)

Code	Power	CCT	Beam	CRI	Finish	Size
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	White	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	black	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm
LBE2107	10W	2700K, 3000K, 4000K, 5000K	15°	90	white	127x34x57mm

Dimensions

Technical Drawing

Drawing and sizes shown for model LBE2107.

Size — model LBE2107

127x34x57mm

Cut-Out

119x25mm

Technical Data

Full Specification

Dimensions	127x34x57mm
Cut-out	119x25mm
Power	10W
Lumen output	650lm
Efficacy	65 lm/W
Optics / beam angle	15° · 24° · 38°
Colour temperature	2700K · 3000K · 4000K · 5000K
CRI / R9	90
UGR	On request
IP rating	IP20
IK rating	On request
Ambient temperature (Ta)	On request
Driver	On request
Dimming / control	On request
Input voltage	220-240VAC
Light source	On request
Material	Aluminium
Finish	white · black · Matt White · Matt Black
Mounting / installation	On request
Net weight	On request
Certification	On request
Lifetime	On request
Warranty	On request
Lead time	On request
