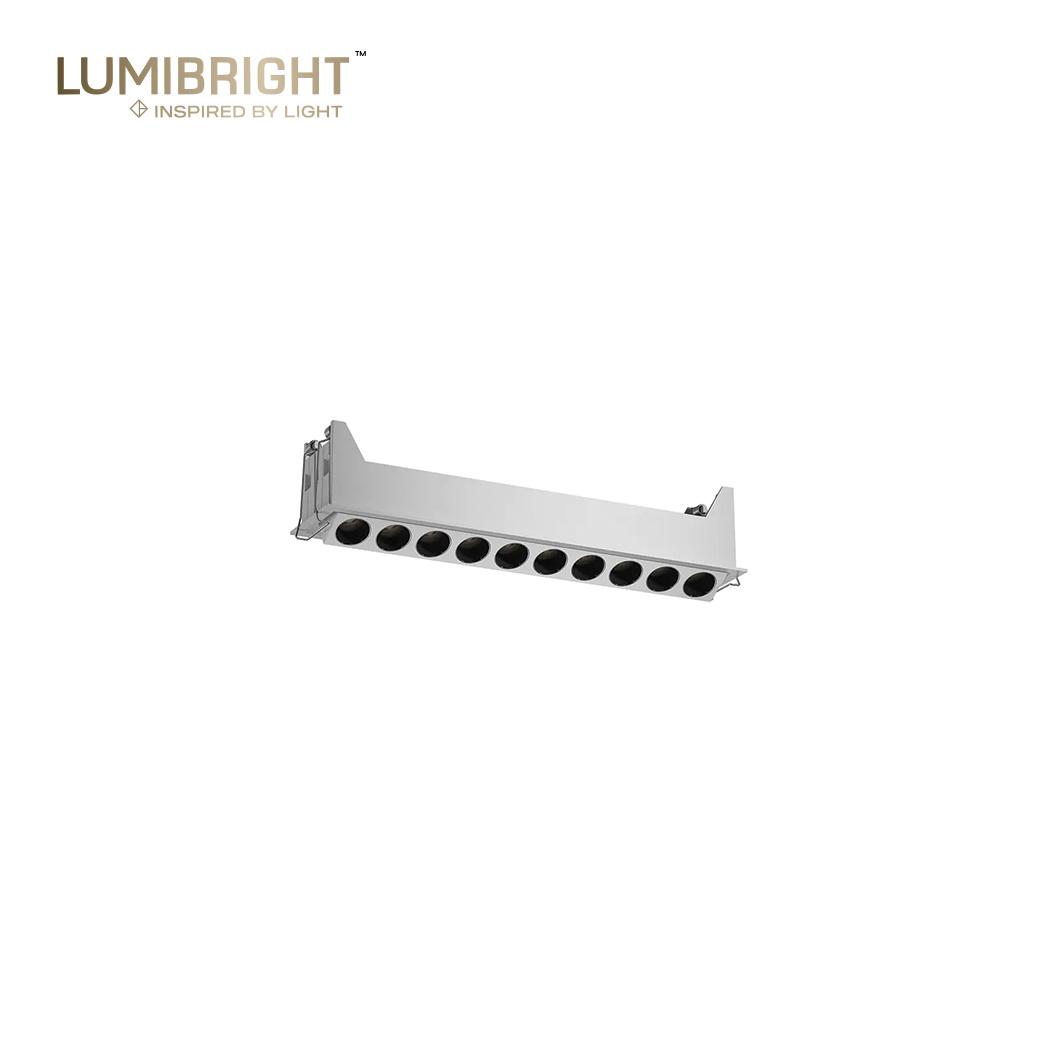

Spot Light
FUSION
26 variants·luminaire·ceiling recessed
Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (26)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | White | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm | |
| LBE2115 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 250x51x50mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2115.
Size — model LBE2115
250x51x50mm
Cut-Out
243x44mm
Technical Data
Full Specification
| Dimensions | 250x51x50mm |
|---|---|
| Cut-out | 243x44mm |
| Power | 20W |
| Lumen output | 1300lm |
| Efficacy | 65 lm/W |
| Optics / beam angle | 15° · 24° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI / R9 | 90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 220-240VAC |
| Light source | On request |
| Material | Aluminium |
| Finish | white · black · Matt White · Matt Black |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
12 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
20W
Power
15°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish
250x51x50mm
Dimensions
243x44mm
Cut-Out
