Spot Light

GRIND

40 variants·luminaire·ceiling recessed

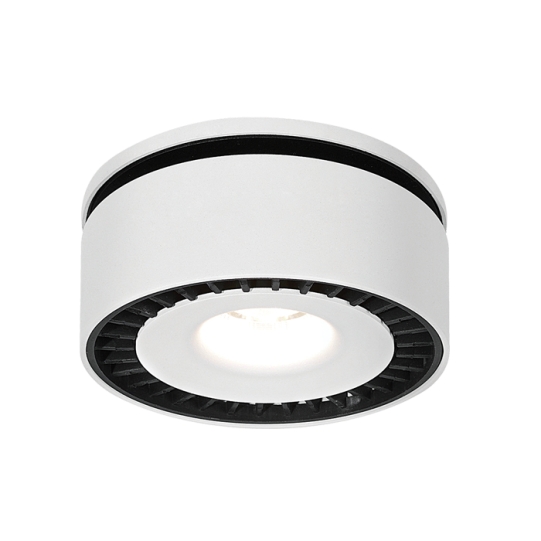

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (40)

Code	Power	CCT	Beam	CRI	Finish	Size
LB2152	—	2700K, 3000K, 4000K, 5000K, 5600K	24°	—	White	—
LB2152	18W	2700K, 3000K, 4000K, 5000K	24°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	50°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	32°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	32°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	24°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	50°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	24°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	32°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	2700K, 3000K, 4000K, 5000K	50°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	32°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	32°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	32°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	32°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	32°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	50°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	32°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	32°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	50°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	24°	80	black-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	50°	80	black-with-sand+white-with-sand	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	32°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	50°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	24°	80	white-with-sand+black	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	24°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	50°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K, 5600K	32°	80	white-with-sand+golden	Ø127x103mm
LB2152	18W	3000K, 4000K, 5000K	24°	80	White	Ø127x103mm

Dimensions

Technical Drawing

Drawing and sizes shown for model LB2152.

Size — model LB2152

Ø127x103mm

Cut-Out

Ø120mm

Technical Data

Full Specification

Dimensions	Ø127x103mm
Cut-out	Ø120mm
Power	18W
Lumen output	On request
Efficacy	On request
Optics / beam angle	24° · 32° · 50°
Colour temperature	2700K · 3000K · 4000K · 5000K +1 more
CRI / R9	80
UGR	On request
IP rating	IP20
IK rating	On request
Ambient temperature (Ta)	On request
Driver	On request
Dimming / control	On request
Input voltage	3VDC
Light source	On request
Material	On request
Finish	white-with-sand+black · White · black · black-with-sand+golden +6 more
Mounting / installation	On request
Net weight	On request
Certification	On request
Lifetime	On request
Warranty	On request
Lead time	On request
