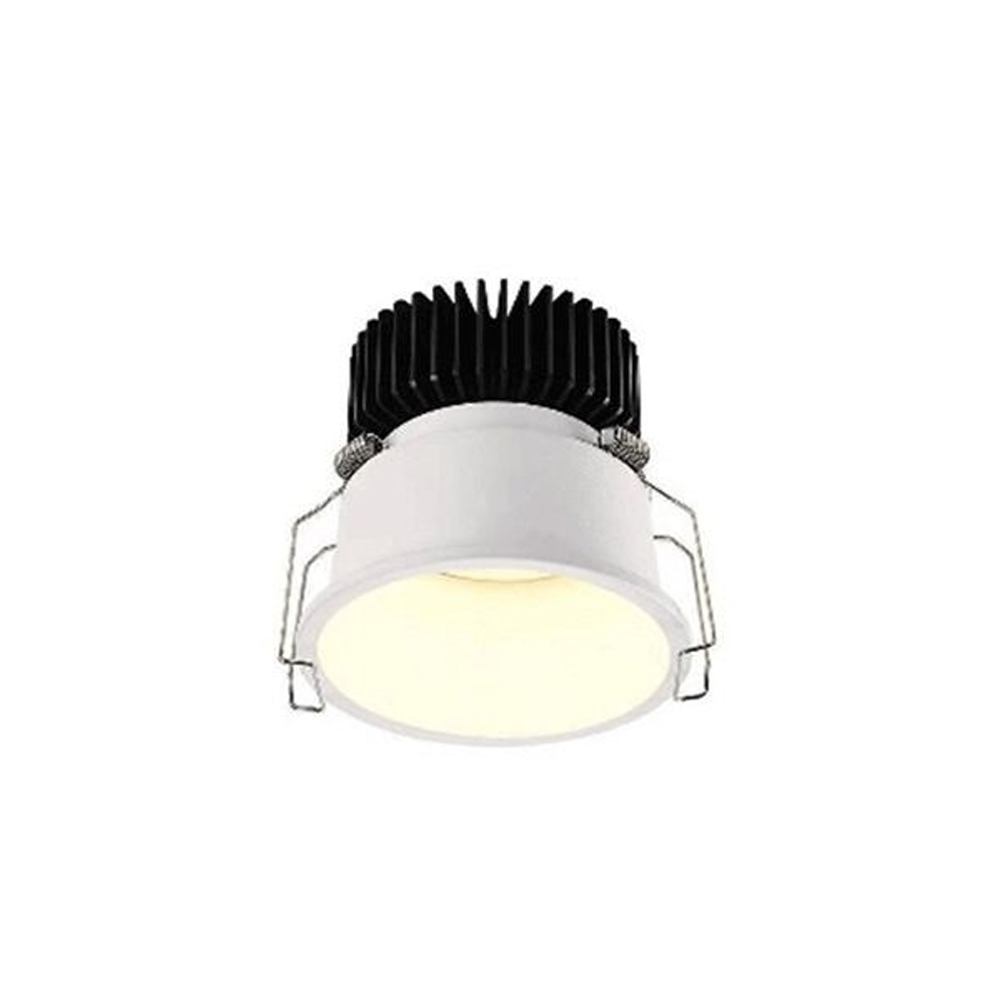

Spot Light
HERMES
4 variants·luminaire·ceiling recessed
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2907.
Size — model LB2907
Ø80x70mm
Cut-Out
Ø70mm
Technical Data
Full Specification
| Dimensions | Ø80x70mm |
|---|---|
| Cut-out | Ø70mm |
| Power | 10W |
| Lumen output | On request |
| Efficacy | On request |
| Optics / beam angle | 24° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI / R9 | 90 · >90 |
| UGR | On request |
| IP rating | IP44 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 220-240VAC |
| Light source | On request |
| Material | Die Casting Aluminum |
| Finish | white |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
10 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
10W
Power
38°
Beam Angle
3000K
Colour Temperature
CRI 90
Colour Rendering
IP44
Protection Rating
2 finishes
Body Finish
Ø80x70mm
Dimensions
Ø70mm
Cut-Out
