Spot Light
INLINE
7 variants·luminaire·ceiling recessed

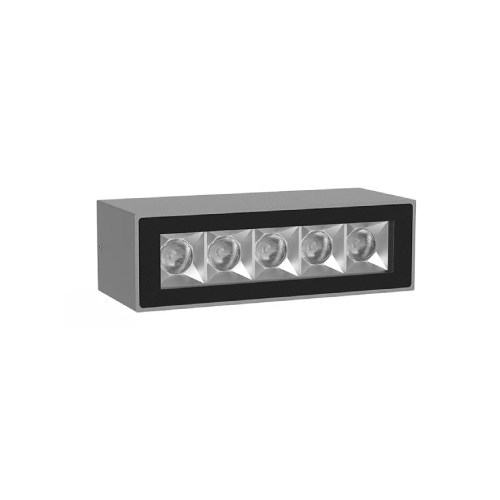

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (7)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2160 | 12W | 3000K | 24° | 90 | White | ∅83x80mm | |
| LBE2160 | 12W | 3000K | 24° | 90 | black+chrome | ∅83x80mm | |
| LBE2160 | 12W | 3000K | 24° | 90 | black+mirror-black | ∅83x80mm | |
| LBE2160 | 12W | 3000K | 24° | 90 | white+chrome | ∅83x80mm | |
| LBE2160 | 12W | 3000K | 24° | 90 | white+mirror-black | ∅83x80mm | |
| LBE2160 | 12W | 3000K | 24° | 90 | white+mirror-white | ∅83x80mm | |
| LBE2160 | 12W | 3000K | 24° | 90 | White | ∅83x80mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2160.
Size — model LBE2160
∅83x80mm
Cut-Out
Φ75mm
Technical Data
Full Specification
| Dimensions | ∅83x80mm |
|---|---|
| Cut-out | Φ75mm |
| Power | 12W |
| Lumen output | On request |
| Efficacy | On request |
| Optics / beam angle | 24° · Wall Washer |
| Colour temperature | 3000K · 4000K · 5000K |
| CRI / R9 | 90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 220-240VAC |
| Light source | On request |
| Material | Aluminium |
| Finish | white+chrome · White · black+chrome · black+mirror-black +5 more |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
10 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
12W
Power
24°
Beam Angle
3000K
Colour Temperature
CRI 90
Colour Rendering
IP20
Protection Rating
6 finishes
Body Finish
∅83x80mm
Dimensions
Φ75mm
Cut-Out
