Spot Light
ISLA
23 variants·luminaire·ceiling recessed

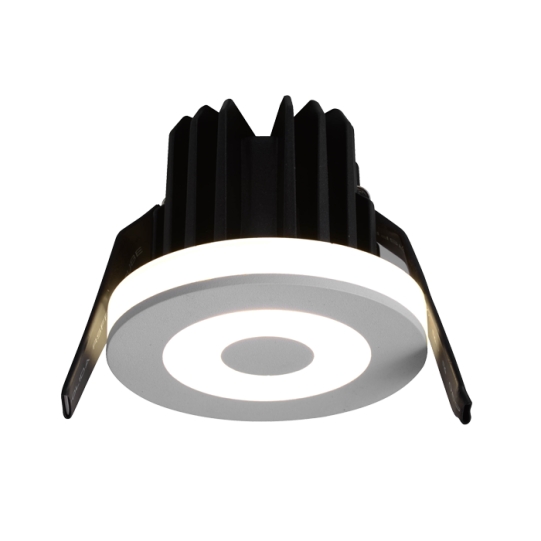

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (23)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LB2206 | — | 2700K, 3000K, 4000K, 5000K, 5600K, 6000K | 24° | — | White | — | |
| LB2206 | 9.2W | 2700K, 3000K, 4000K, 5000K | 24° | 90 | black | Ø85x63mm | |
| LB2206 | 9.2W | 2700K, 3000K, 4000K, 5000K | 24° | 90 | black-sand | Ø85x63mm | |
| LB2206 | 9.2W | 2700K, 3000K, 4000K, 5000K | 24° | 90 | white | Ø85x63mm | |
| LB2206 | 9.2W | 2700K, 3000K, 4000K, 5000K | 24° | 90 | white | Ø85x63mm | |
| LB2206 | 9.2W | 2700K, 3000K, 4000K, 5000K | 24° | 90 | white-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | black | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | black-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | white | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | white-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | black | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | black-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | white | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | white-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 5600K | 24° | 90 | black | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 5600K | 24° | 90 | black-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 5600K | 24° | 90 | white | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 5600K | 24° | 90 | white-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 6000K | 24° | 90 | black | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 6000K | 24° | 90 | black-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 6000K | 24° | 90 | white | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K, 6000K | 24° | 90 | white-sand | Ø85x63mm | |
| LB2206 | 9.2W | 3000K, 4000K, 5000K | 24° | 90 | White | Ø85x63mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2206.
Size — model LB2206
Ø85x63mm
Cut-Out
Ø70mm
Technical Data
Full Specification
| Dimensions | Ø85x63mm |
|---|---|
| Cut-out | Ø70mm |
| Power | 9.2W |
| Lumen output | On request |
| Efficacy | On request |
| Optics / beam angle | 24° · ACRYLIC |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +2 more |
| CRI / R9 | 90 · 80 |
| UGR | On request |
| IP rating | IP54 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | constant-current |
| Light source | On request |
| Material | On request |
| Finish | white · black · black-sand · white-sand +2 more |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
9 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
9.2W
Power
24°
Beam Angle
6 CCT
2700K, 3000K, 4000K, 5000K, 5600K, 6000K
CRI 90
Colour Rendering
IP54
Protection Rating
5 finishes
Body Finish
Ø85x63mm
Dimensions
Ø70mm
Cut-Out
