Spot Light
LASER BLADE
5 variants·luminaire·ceiling recessed

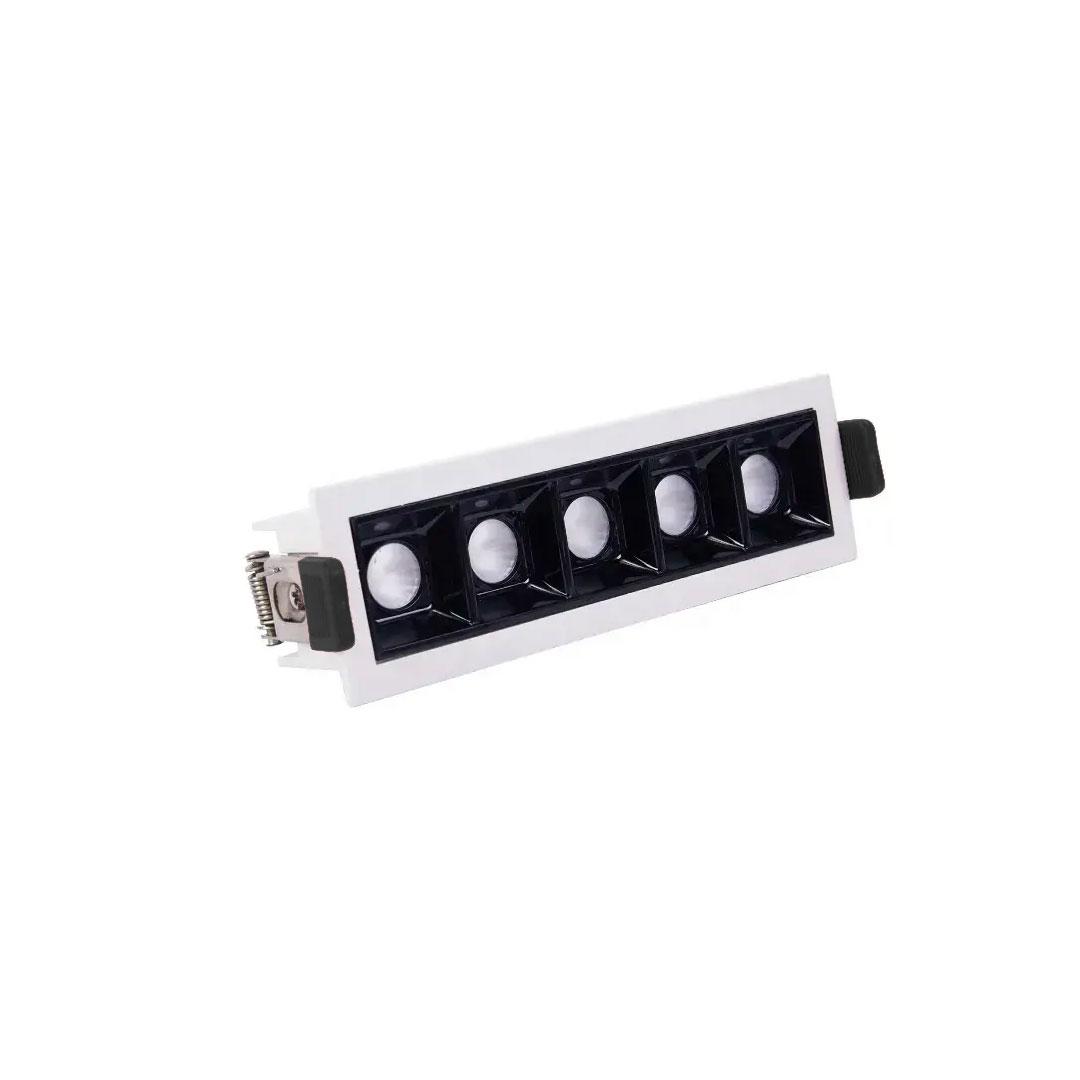

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (5)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2156 | 20W | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K | 20° | 90 | White | L150xW45xH38mm | |
| LBE2156 | 20W | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K | 20° | 90 | white+mirror-white | L150xW45xH38mm | |
| LBE2156 | 20W | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K | 20° | 90 | white | L150xW45xH38mm | |
| LBE2156 | 20W | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K | 20° | 90 | white | L150xW45xH38mm | |
| LBE2156 | 20W | 2700K, 3000K, 3500K, 4000K, 5000K, 6000K | 20° | 90 | white | L150xW45xH38mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2156.
Size — model LBE2156
L150xW45xH38mm
Cut-Out
144x35mm
Technical Data
Full Specification
| Dimensions | L150xW45xH38mm |
|---|---|
| Cut-out | 144x35mm |
| Power | 4W · 20W |
| Lumen output | 2500lm |
| Efficacy | 125 lm/W |
| Optics / beam angle | 20° · 24° · 30° · 45° |
| Colour temperature | 2700K · 3000K · 3500K · 4000K +2 more |
| CRI / R9 | 90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 220-240VAC |
| Light source | On request |
| Material | Aluminum |
| Finish | white+mirror-white · White · White+Mirror White |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
12 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
20W
Power
20°
Beam Angle
6 CCT
2700K, 3000K, 3500K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish
L150xW45xH38mm
Dimensions
144x35mm
Cut-Out
