Spot Light
ORVILLE
3 variants·luminaire·ceiling recessed

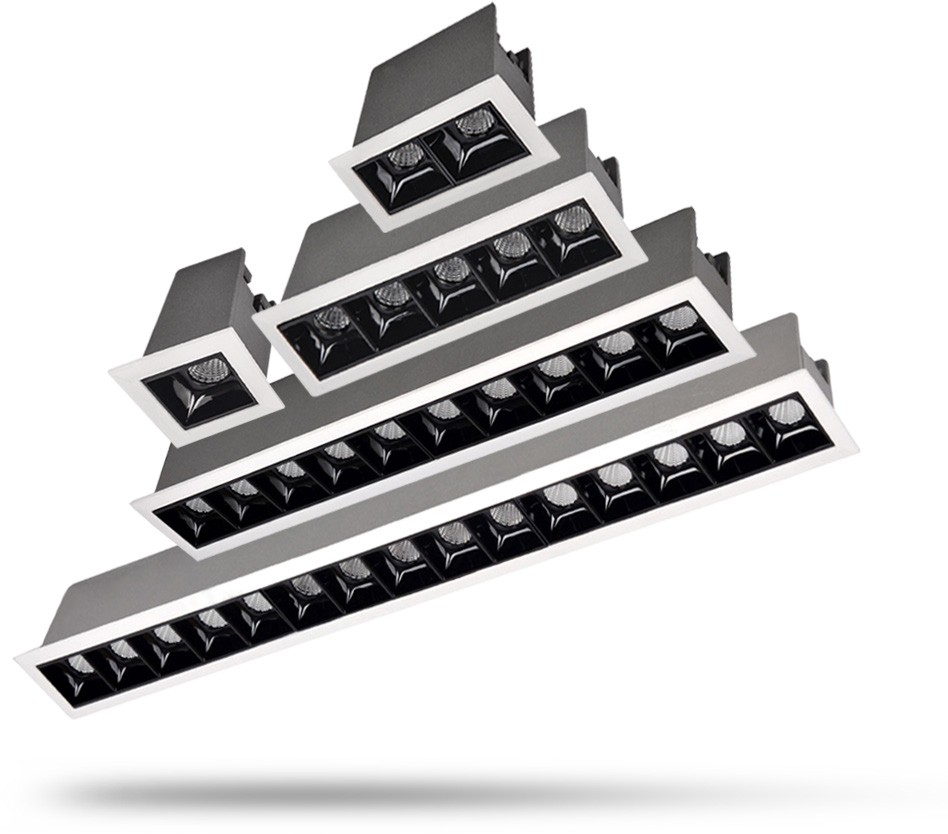

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (3)
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2943.
Size — model LB2943
45x45x49mm
Cut-Out
37x37mm
Technical Data
Full Specification
| Dimensions | 45x45x49mm |
|---|---|
| Cut-out | 37x37mm |
| Power | 2W |
| Lumen output | On request |
| Efficacy | On request |
| Optics / beam angle | 15° · 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI / R9 | 90 · >90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 9VDC |
| Light source | On request |
| Material | Aluminum |
| Finish | white+mirror-black · White · White+Mirror Black |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
10 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
2W
Power
15°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
45x45x49mm
Dimensions
37x37mm
Cut-Out
