Spot Light
ORVILLE
8 variants·luminaire·ceiling recessed

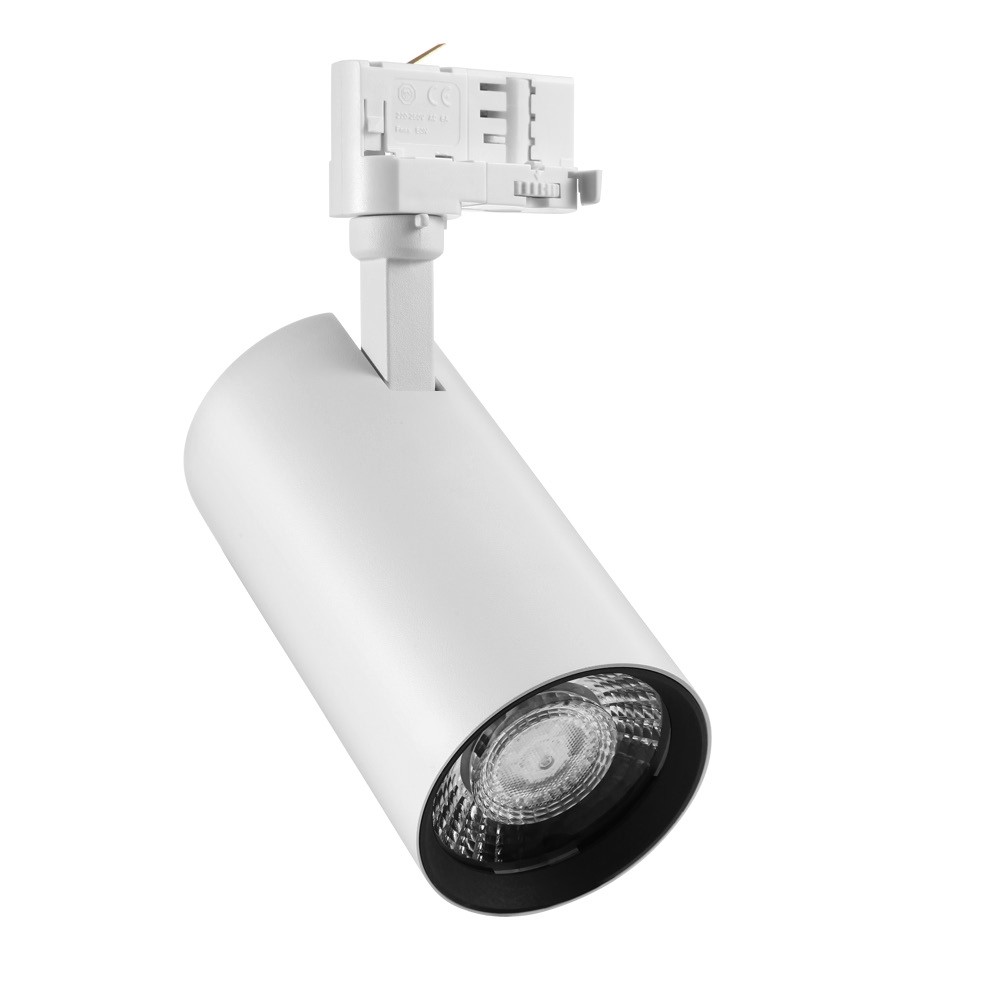

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (8)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | white+mirror-black | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | white+mirror-black | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | white+mirror-black | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | white+mirror-black | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | white+mirror-black | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | white+mirror-black | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | White | 413x45x49mm | |
| LB2947 | 30W | 2700K, 3000K, 4000K, 6000K | 15° | 90 | White | 413x45x49mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2947.
Size — model LB2947
413x45x49mm
Cut-Out
405x37mm
Technical Data
Full Specification
| Dimensions | 413x45x49mm |
|---|---|
| Cut-out | 405x37mm |
| Power | 30W |
| Lumen output | On request |
| Efficacy | On request |
| Optics / beam angle | 15° · 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI / R9 | 90 · >90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 36VAC |
| Light source | On request |
| Material | Aluminum |
| Finish | white+mirror-black · White · White+Mirror Black |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
10 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
30W
Power
15°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
413x45x49mm
Dimensions
405x37mm
Cut-Out
