Spot Light
RAYOS
24 variants·luminaire·ceiling recessed

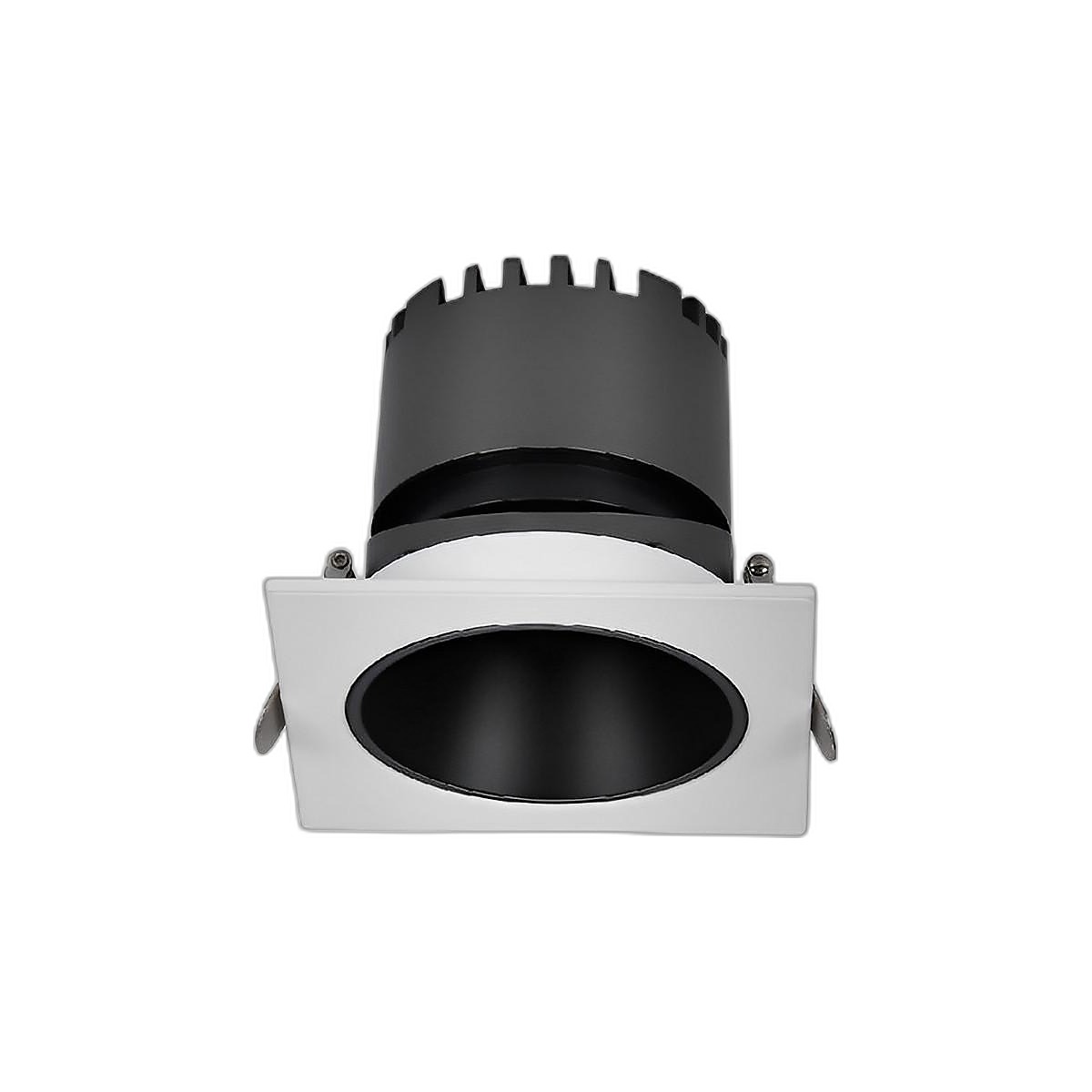

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Colour
Finish
IP Rating
Select attributes to narrow down variants
All Variants (24)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+matt-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+matt-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+chrome | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+chrome | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+matt-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+matt-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+matt-white | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+matt-white | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+mirror-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+mirror-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+silver | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | black+silver | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+chrome | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+chrome | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+matt-white | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+matt-white | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+mirror-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+mirror-black | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+mirror-white | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+mirror-white | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+silver | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | white+silver | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | White | 90x90x65mm | |
| LBE2011 | 9W | 3000K, 4000K, 6000K | 24° | 90 | White | 90x90x65mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2011.
Size — model LBE2011
90x90x65mm
Cut-Out
Ø75mm
Technical Data
Full Specification
| Dimensions | 90x90x65mm |
|---|---|
| Cut-out | Ø75mm |
| Power | 9W |
| Lumen output | 430lm |
| Efficacy | 48 lm/W |
| Optics / beam angle | 24° · 36° |
| Colour temperature | 3000K · 4000K · 5000K · 6000K +2 more |
| CRI / R9 | 90 · >90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 220-240VAC |
| Light source | On request |
| Material | Aluminum |
| Finish | white+matt-white · White · black+chrome · black+matt-black +15 more |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
12 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
9W
Power
24°
Beam Angle
3 CCT
3000K, 4000K, 6000K
Switch / Switch(3000K-4000K-6000K)
Colour Options
CRI 90
Colour Rendering
IP20
Protection Rating
12 finishes
Body Finish
90x90x65mm
Dimensions
Ø75mm
Cut-Out
