Spot Light

TIEF

24 variants·luminaire·ceiling recessed

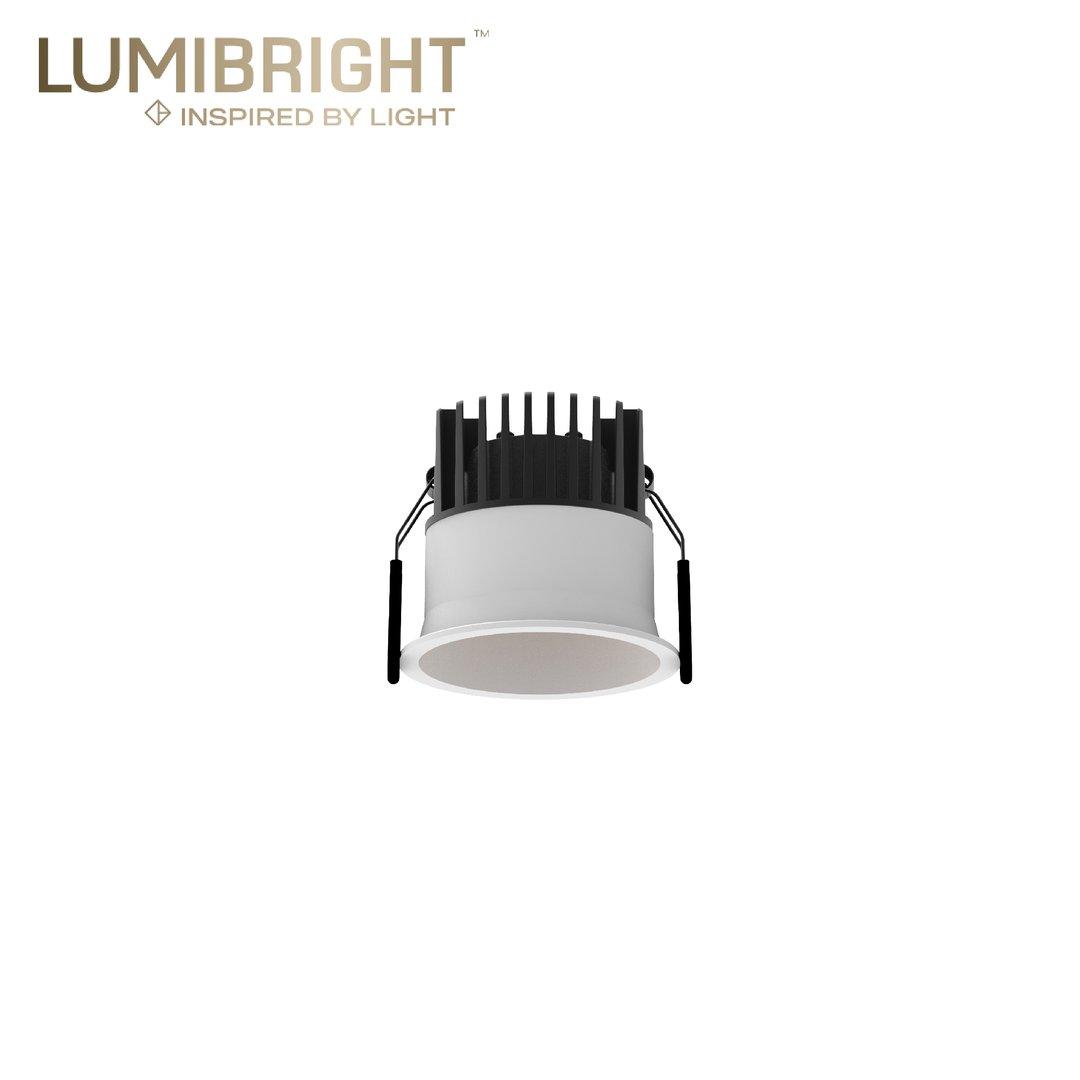

Product View

Configuration

Select Specification

Power

Beam Angle

CCT

Finish

IP Rating

Select attributes to narrow down variants

All Variants (24)

Code	Power	CCT	Beam	CRI	Finish	Size
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	black-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	white-sand	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	White	Ø78xH72mm
LBE2143	9W	2700K, 3000K, 4000K, 5000K, 6000K	15°	90	White	Ø78xH72mm

Dimensions

Technical Drawing

Drawing and sizes shown for model LBE2143.

Size — model LBE2143

Ø78xH72mm

Cut-Out

Ø72mm

Technical Data

Full Specification

Dimensions	Ø78xH72mm
Cut-out	Ø72mm
Power	9W
Lumen output	654lm
Efficacy	73 lm/W
Optics / beam angle	15° · 24° · 25°
Colour temperature	2700K · 3000K · 4000K · 5000K +1 more
CRI / R9	90
UGR	On request
IP rating	IP65
IK rating	On request
Ambient temperature (Ta)	On request
Driver	On request
Dimming / control	On request
Input voltage	220-240VAC
Light source	On request
Material	Aluminium
Finish	white-sand · White · black-sand · White With Sand +1 more
Mounting / installation	On request
Net weight	On request
Certification	On request
Lifetime	On request
Warranty	On request
Lead time	On request
