Spot Light
TRESCO
12 variants·luminaire·ceiling recessed
Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (12)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | matt-white+black | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | White | 95x95x100mm | |
| LBE2057 | 12W | 2700K, 3000K, 4000K, 6000K | 24° | 90 | White | 95x95x100mm |
Dimensions

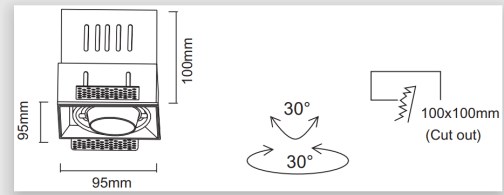

Technical Drawing
Drawing and sizes shown for model LBE2057.
Size — model LBE2057
95x95x100mm
Cut-Out
100x100mm
Technical Data
Full Specification
| Dimensions | 95x95x100mm |
|---|---|
| Cut-out | 100x100mm |
| Power | 12W · 1x12W |
| Lumen output | 960lm |
| Efficacy | 80 lm/W |
| Optics / beam angle | 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI / R9 | 90 · >90 |
| UGR | On request |
| IP rating | IP20 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 36VDC |
| Light source | On request |
| Material | Aluminum |
| Finish | matt-white+black · White · Matt White+Black |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
12 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
12W
Power
24°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 6000K
CRI 90
Colour Rendering
IP20
Protection Rating
2 finishes
Body Finish
95x95x100mm
Dimensions
100x100mm
Cut-Out
