Spot Light
TRESCO
2 product lines·23 total variants·luminaire·ceiling recessed
Technical Data
Full Specification
| Dimensions | 115x115x120mm · 210x110mm |
|---|---|
| Cut-out | 120x120mm · 183x97mm |
| Power | 20W · 1x20W |
| Lumen output | 1600lm |
| Efficacy | 80 lm/W |
| Optics / beam angle | 24° · 36° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI / R9 | 80 · 90 · >90 |
| UGR | On request |
| IP rating | IP20 · IP44 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 36VDC · 42VDC |
| Light source | On request |
| Material | Aluminum |
| Finish | matt-white+black · White · Matt White+Black |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
12 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
Dimensions

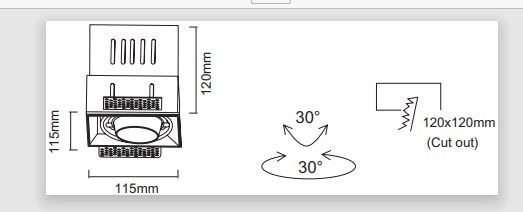

Technical Drawing
Drawing and sizes shown for model LBE2059. This family has 2 models with different dimensions — select a model above, or open its row in the variant table, for its own drawing.
Size — model LBE2059
115x115x120mm
Cut-Out
120x120mm
Specifications
At a Glance
10–20W
Power Range
1 options
Beam: 24°
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 90
Colour Rendering
IP20 / IP44
Protection Rating
3 finishes
Body Finish Options
2 sizes
115x115x120mm, 210x110mm
2 cut-outs
120x120mm, 183x97mm
