Spot Light
VASTE
9 variants·luminaire·ceiling recessed

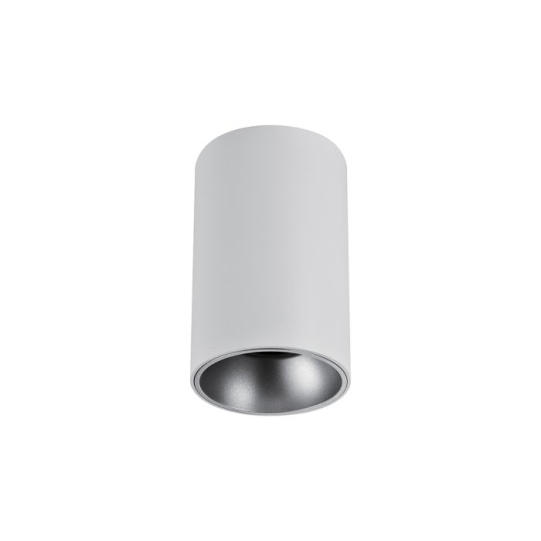

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (9)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | ral-9003 | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | white-sand | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | white-sand | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | white-sand | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | white-sand | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | white-sand | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | white-sand | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | White | Ø95x100mm | |
| LB2849 | 15W | 2700K, 3000K, 4000K, 5000K, 6000K | 38° | 80 | White | Ø95x100mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LB2849.
Size — model LB2849
Ø95x100mm
Technical Data
Full Specification
| Dimensions | Ø95x100mm |
|---|---|
| Cut-out | On request |
| Power | 15W |
| Lumen output | 1400lm |
| Efficacy | 93 lm/W |
| Optics / beam angle | 20° · 24° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K +1 more |
| CRI / R9 | 80 · >80 |
| UGR | On request |
| IP rating | IP65 |
| IK rating | On request |
| Ambient temperature (Ta) | On request |
| Driver | On request |
| Dimming / control | On request |
| Input voltage | 200-240VAC |
| Light source | On request |
| Material | Aluminum |
| Finish | ral-9003 · White · white-sand · RAL 9003 +1 more |
| Mounting / installation | On request |
| Net weight | On request |
| Certification | On request |
| Lifetime | On request |
| Warranty | On request |
| Lead time | On request |
11 of 24 specification rows published from the 2026 master data. Ask our technical team for anything shown as “on request”.
Specifications
At a Glance
15W
Power
38°
Beam Angle
5 CCT
2700K, 3000K, 4000K, 5000K, 6000K
CRI 80
Colour Rendering
IP65
Protection Rating
3 finishes
Body Finish
Ø95x100mm
Dimensions
