Spot Light
FUSION
26 variants·luminaire·ceiling recessed

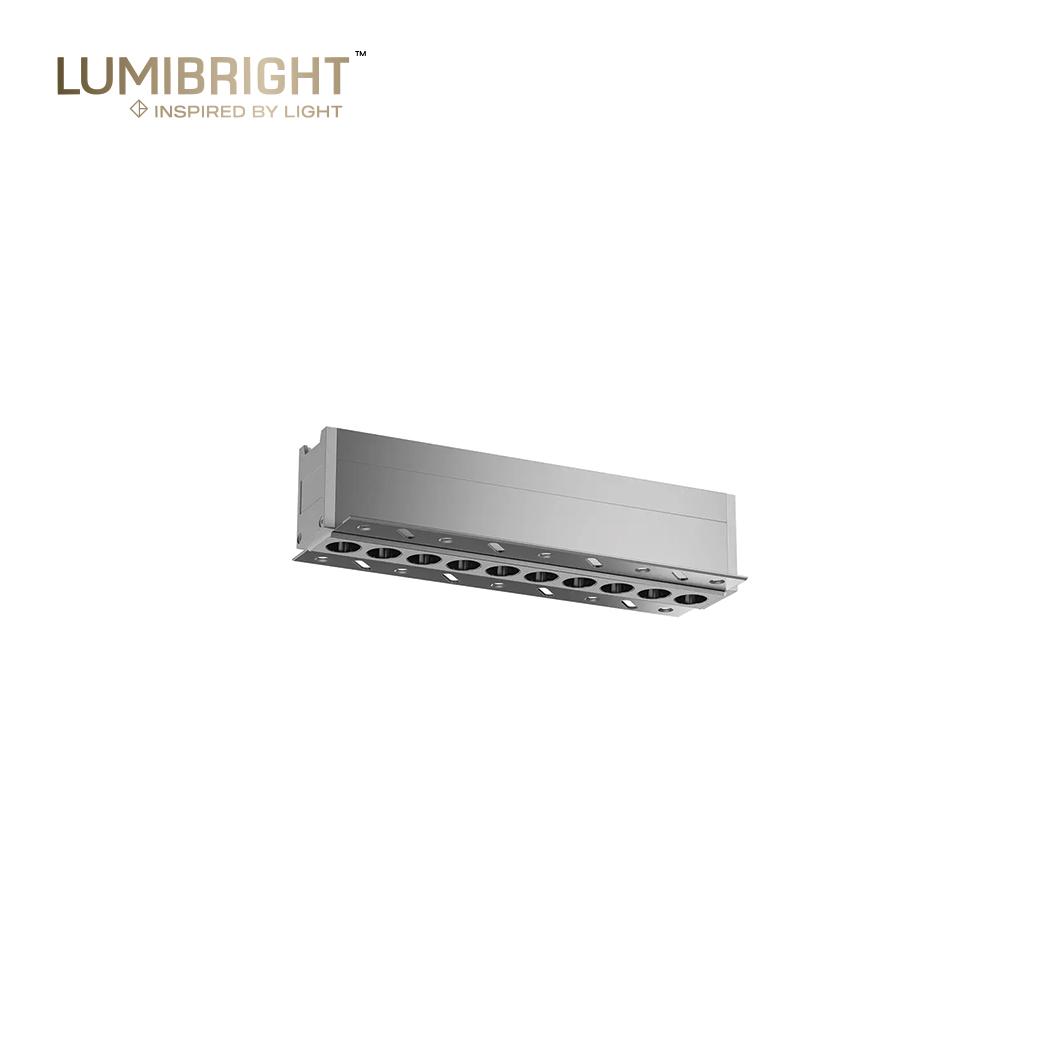

Product View
Configuration
Select Specification
Power
Beam Angle
CCT
Finish
IP Rating
Select attributes to narrow down variants
All Variants (26)
| Code | Power | CCT | Beam | CRI | Finish | Size | |
|---|---|---|---|---|---|---|---|
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | White | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | black | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm | |
| LBE2112 | 20W | 2700K, 3000K, 4000K, 5000K | 15° | 90 | white | 245x80x58mm |
Dimensions
Technical Drawing
Drawing and sizes shown for model LBE2112.
Size — model LBE2112
245x80x58mm
Cut-Out
247x40mm
Technical Data
Full Specification
| Dimensions | 245x80x58mm |
|---|---|
| Cut-out | 247x40mm |
| Power | 20W |
| Lumen output | 1300lm |
| Efficacy | Not published — technical review required |
| Optics / beam angle | 15° · 24° · 38° |
| Colour temperature | 2700K · 3000K · 4000K · 5000K |
| CRI Ra | 90 |
| R9 | Not published — technical review required |
| TM-30 Rf / Rg | Not published — technical review required |
| UGR | Not published — technical review required |
| IP rating | IP20 |
| IK rating | Not published — technical review required |
| Ambient temperature (Ta) | Not published — technical review required |
| Driver | Not published — technical review required |
| Dimming / control | Not published — technical review required |
| Input voltage | 220-240VAC |
| Light source | Not published — technical review required |
| Material | Aluminium |
| Finish | white · black · Matt White · Matt Black |
| Mounting / installation | Not published — technical review required |
| Net weight | Not published — technical review required |
| Certification | Not published — technical review required |
| Lifetime | Not published — technical review required |
| Warranty | Not published — technical review required |
| Lead time | Not published — technical review required |
11 of 26 specification rows published from the 2026 master data. Values vary by model; missing test data is not estimated. Select an exact model for approval.
Specifications
At a Glance
20W
Power
15°
Beam Angle
4 CCT
2700K, 3000K, 4000K, 5000K
CRI 90
Colour Rendering
IP20
Protection Rating
3 finishes
Body Finish
245x80x58mm
Dimensions
247x40mm
Cut-Out
